MIXING VALVES 3S

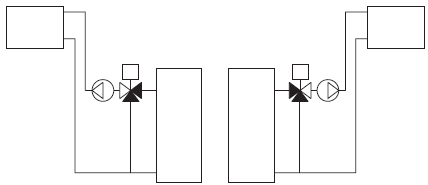

TV 3S are mixing valves made in brass for regulating heating- or cooling applications. The valves comes with knob for manual operation, but can easily - and with advantage - be motorized, for example with our controller Thermomatic EC Home. All installation examples can be reversed. The scale is graded on both sides and can also be reversed.

Technical Data

Opening angle: Pressure class: Medium temperature: Torque (by nom. pressure): Working pressure: Connection: 90° PN 10 max. (continuously) +110ºC max. (temporarily) +130ºC min. 0ºC < 3 Nm 1 MPa (10 bar) Internal thread, EN 10226-1 External thread, ISO 228/1 Compression fit., EN 1254-2
